What is...
Features
- One-touch spindle locks enable quick and secure locking of shafts with one click of the knob.
- When the one-touch spindle lock is operated, the knob clicks and the shaft is locked with a steady force. This provides reliable locking of shafts.
- The knob position and the indication line clearly indicate lock/unlock position.
General Guidance
Technical Specs

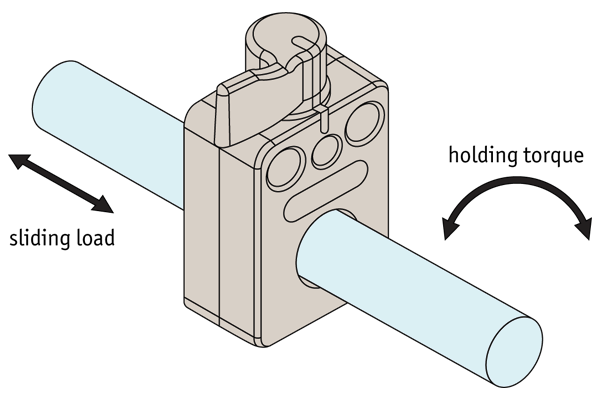

One-touch spindle locks can fix both revolving and sliding of shafts.
| Part Numbers | Max. holding torque (N•m) | Max. sliding load (N) |
| L1480.008-040 | 3 | 400 |
| L1480.010-040 | 3 | 400 |
| L1480.012-040 | 4 | 400 |
| L1480.014-040 | 4 | 400 |
| L1480.012-050 | 5 | 500 |
| L1480.015-050 | 5 | 500 |
| L1480.016-050 | 6 | 500 |
| L1480.020-050 | 6 | 500 |
Note: The above information is for cold finished hardened steel shafts with a h7 tolerance.
