Flanged Carriages
standard
L1016.F-BC Flanged Carriages - Standard
blackened, material: Black chrome coating

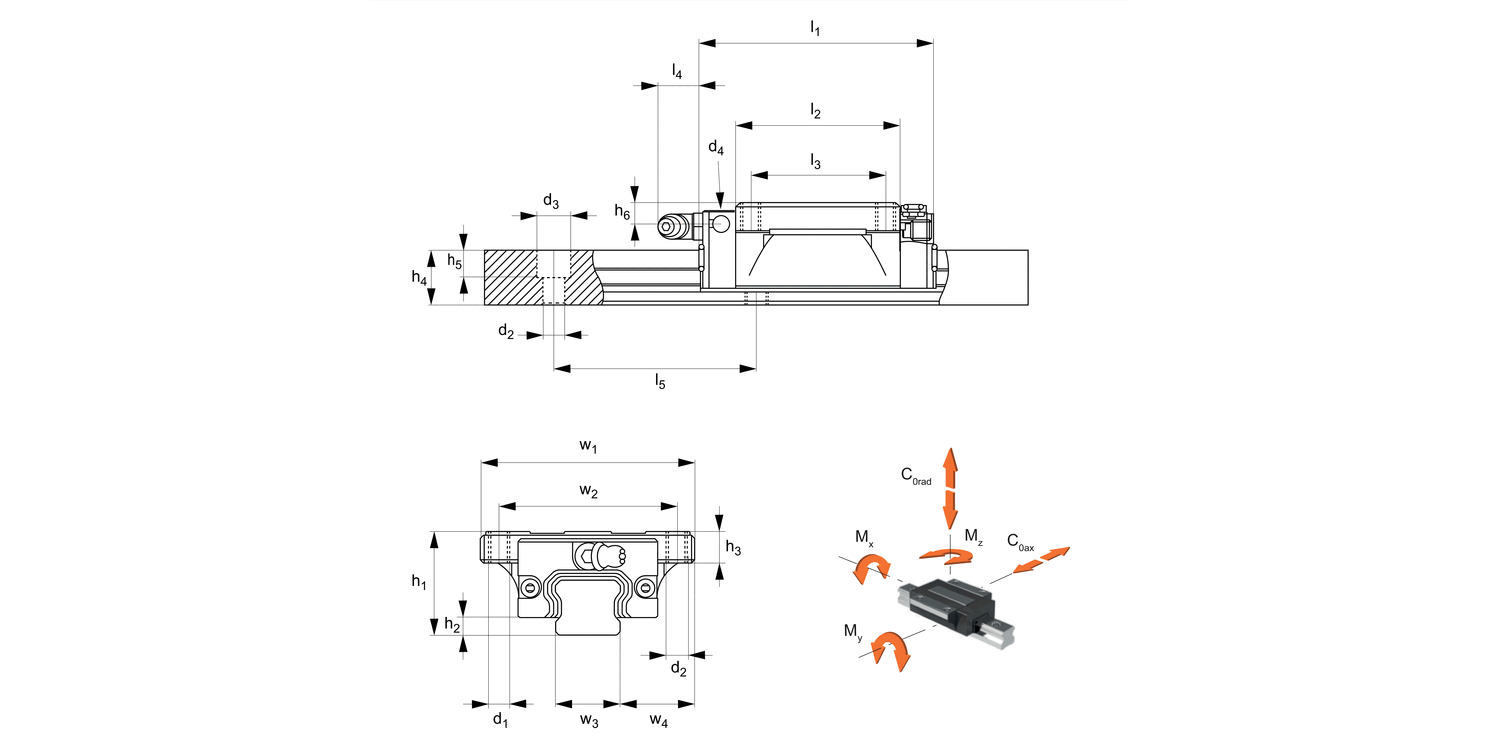

Order No.
L1016.F15-BC
Rail size
15
l1
58.6
h1
24
l2
40.2
w1
47
l3
30
h2
3.3
h3
8.0
h4
13.0
d1
M 5
h5
6.0
d2
4.5
h6
5.5
w2
38
w3
15
w4
16.0
l4
5.0
Weight
kg
0.21
l5
60
d3
7.5
d4
M3 x 0,5
Mx
Nm
137
My
Nm
120
Mz
Nm
120
Dyn. load Crad & ax
kN
11.67
Static load C0rad & ax
kN
19.90
£ 123.91 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 123.91 | 0% |
| 10-19 | £ 111.52 | 10% |
| 20-49 | £ 105.32 | 15% |
| 50-99 | £ 99.13 | 20% |
| 100+ | £ 86.74 | 30% |
Technical & Application
Material
Hardened and ground steel. Matt black oxide ceramic layer, Thickness 2-10 ยต. No deformation of the parts. Resistant to acids, alkalis and solvents. Relatively soft layer (up to 350 HV), which clears away by rolling over in the area of the raceways. Suitable for applications in the optic and medical industry.
Technical Notes
Select the size and number of carriages to suit the required load then select the required rail length, (see part nos. L1016.15 through to L1016.55).
Standard preload carriages are K0 (no preload) or K1 (0,02 x dynamic load capacity). Other preloads available on request.
Tips
Improved version with ball cages allowing the carriages to be removed from the rail without the balls falling out.
