Flanged Carriages
standard

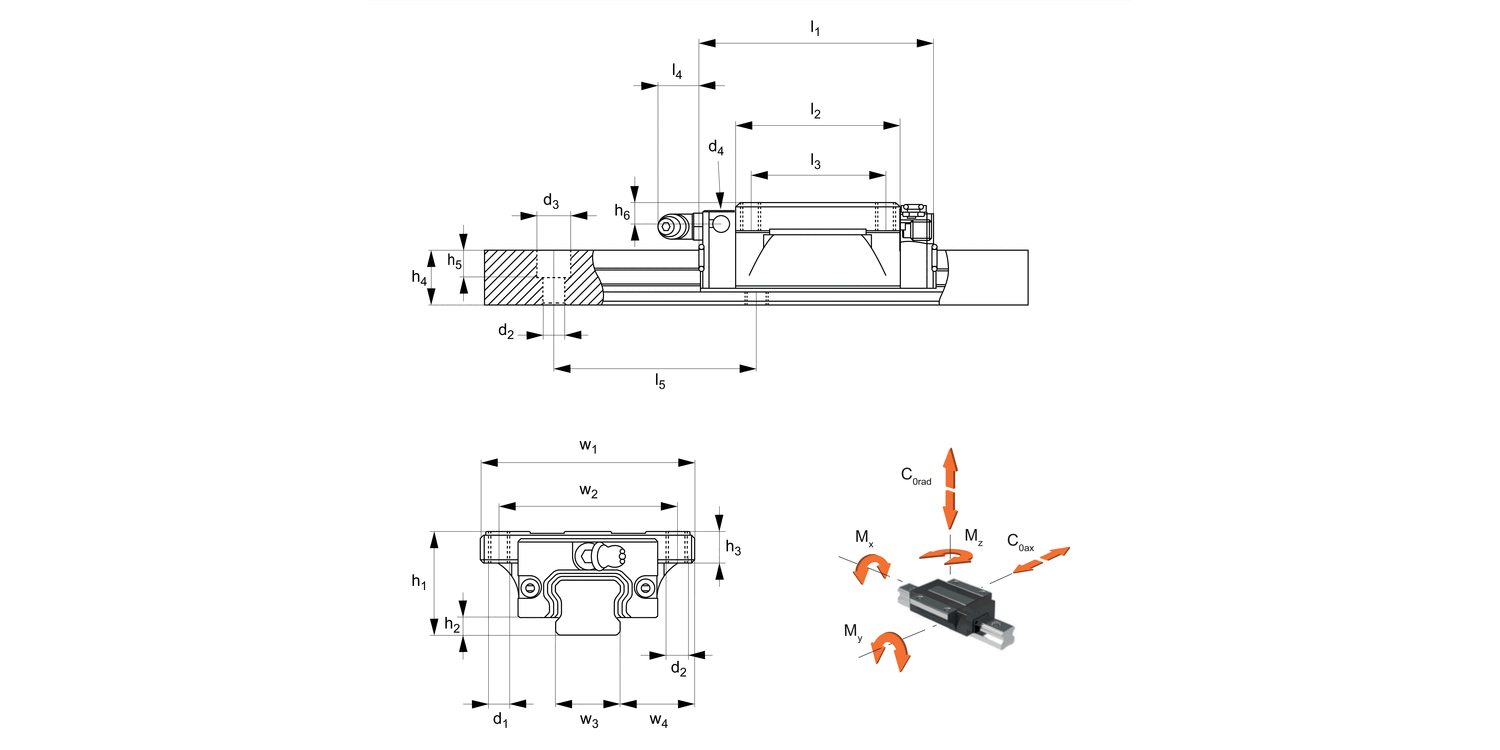

L1016.F-NC Flanged Carriages - Standard
no ball cage, material: Steel
Order No.
L1016.F15-NC
Rail size
15
l1
58.6
h1
24
l2
40.2
w1
47
l3
30
h2
3.4
h3
7.5
h4
13.0
d1
M5
h5
5.5
d2
4.4
h6
5.5
w2
38
w3
15
w4
16.0
l4
5.7
Weight
g
210
l5
60
d3
7.5
d4
M3 x 0,5
Mx
Nm
137
My
Nm
120
Mz
Nm
120
Dyn. load C
kN
11.67
Static load C0rad & ax
kN
19.90
£ 52.17 per unit (click for quantity discounts)
Ready to despatch 166
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 52.17 | 0% |
| 10-19 | £ 46.95 | 10% |
| 20-49 | £ 44.34 | 15% |
| 50-99 | £ 41.74 | 20% |
| 100+ | £ 36.52 | 30% |
Technical & Application
Material
Hardened and ground steel.
Technical Notes
Select the size and number of carriages to suit the required load then select the required rail length, (see part nos. L1016.15 through to L1016.30).
Standard preload carriages are K0 (no preload) or K1 (0,02 x dynamic load capacity). Other preloads available on request.
