Flanged Carriages
aluminium

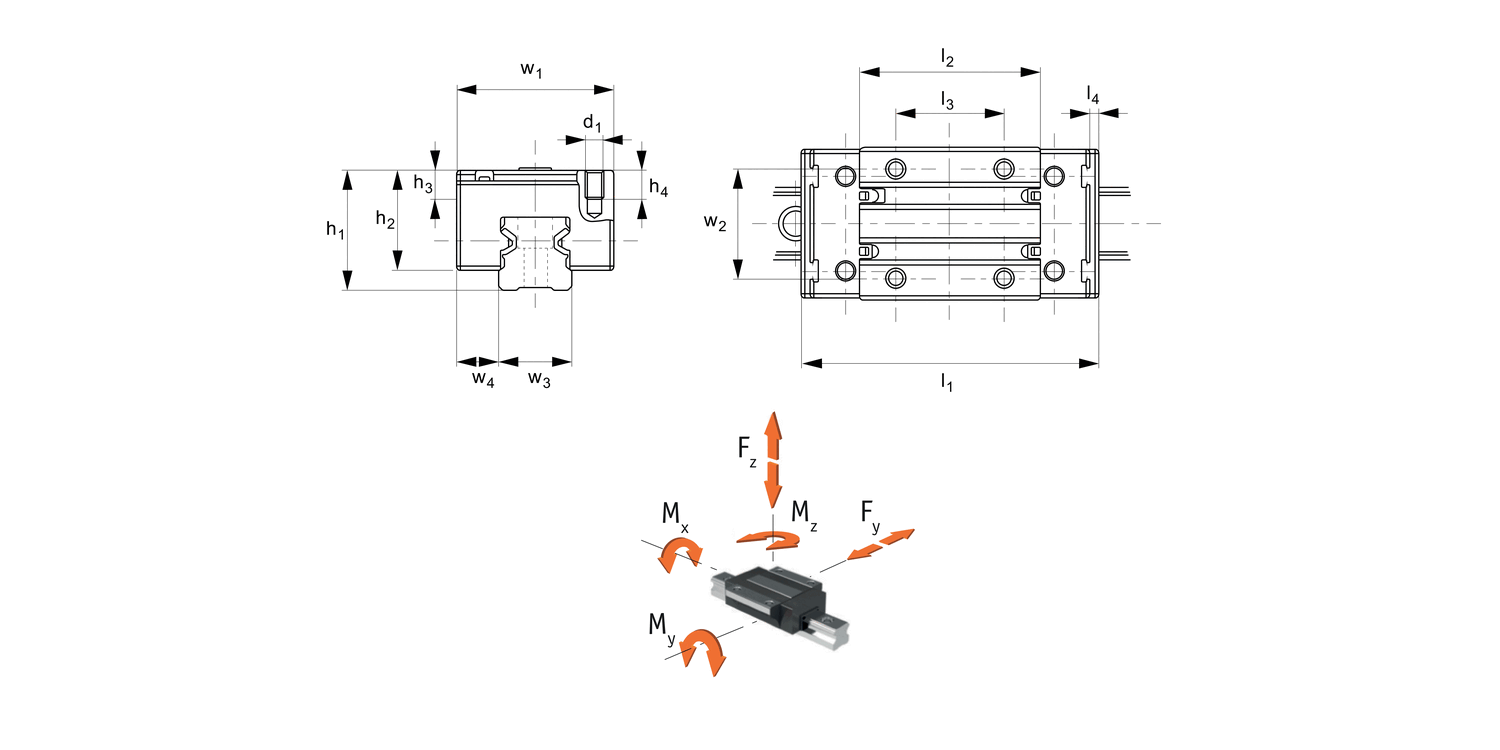

L1018.U Unflanged Aluminium Carriages
with retained ball cage, material: Aluminium block, stainless ball & slider
Order No.
L1018.U15
Rail size
15
l1
64.0
w1
34
h1
±0.03
24
d1
M4
h2
19.8
h3
4.1
h4
6.0
l2
37.8
l3
26
l4
2.5
w2
26
w3
15
Weight
kg
0.07
w4
±0.05
9.5
F
max.
N
2.000
Dyn. load Crad & ax
N
5.000
Mx dyn.
Nm
36
Mx static
max.
Nm
14
My +Mz dyn.
Nm
29
My +Mz static
max.
Nm
12
£ 67.56 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 67.56 | 0% |
| 5-9 | £ 64.18 | 5% |
| 10-19 | £ 60.80 | 10% |
| 20-49 | £ 57.43 | 15% |
| 50+ | £ 50.67 | 25% |
Technical & Application
Material
Aluminium block (X46Cr13 hardened to F35), tensile strength 350N/mm2.
Stainless steel inserts hardened, and stainless ball bearings (DIN 1.4034).
Technical Notes
Compact, light-weight design. 60% saving versus steel versions.
Select the size and number of carriages to suit the required load then select the required rail length, (see rail part nos. L1018). Standard carriages are not preloaded.
Mounting dimensions are identical to those of most steel linear guide rails, making them interchangeable.
Tips
These are aluminium rail carriages and can only be used with corresponding aluminium linear rails L1018. For standard steel linear guideways and carriages see part no. L1016.
Important Notes
Static loads ratings are difficult to calculate clearly due to the combination of materials. Do not exceed Fmax. or maximum static moment load rating. See load calculations on technical pages.
