Steel Lead Screws
right hand thread
L1335 Square Brass Nuts
for lead screws, material: Brass
Order No.
L1335.R12-03
Size
TR12x3
No. of starts
1

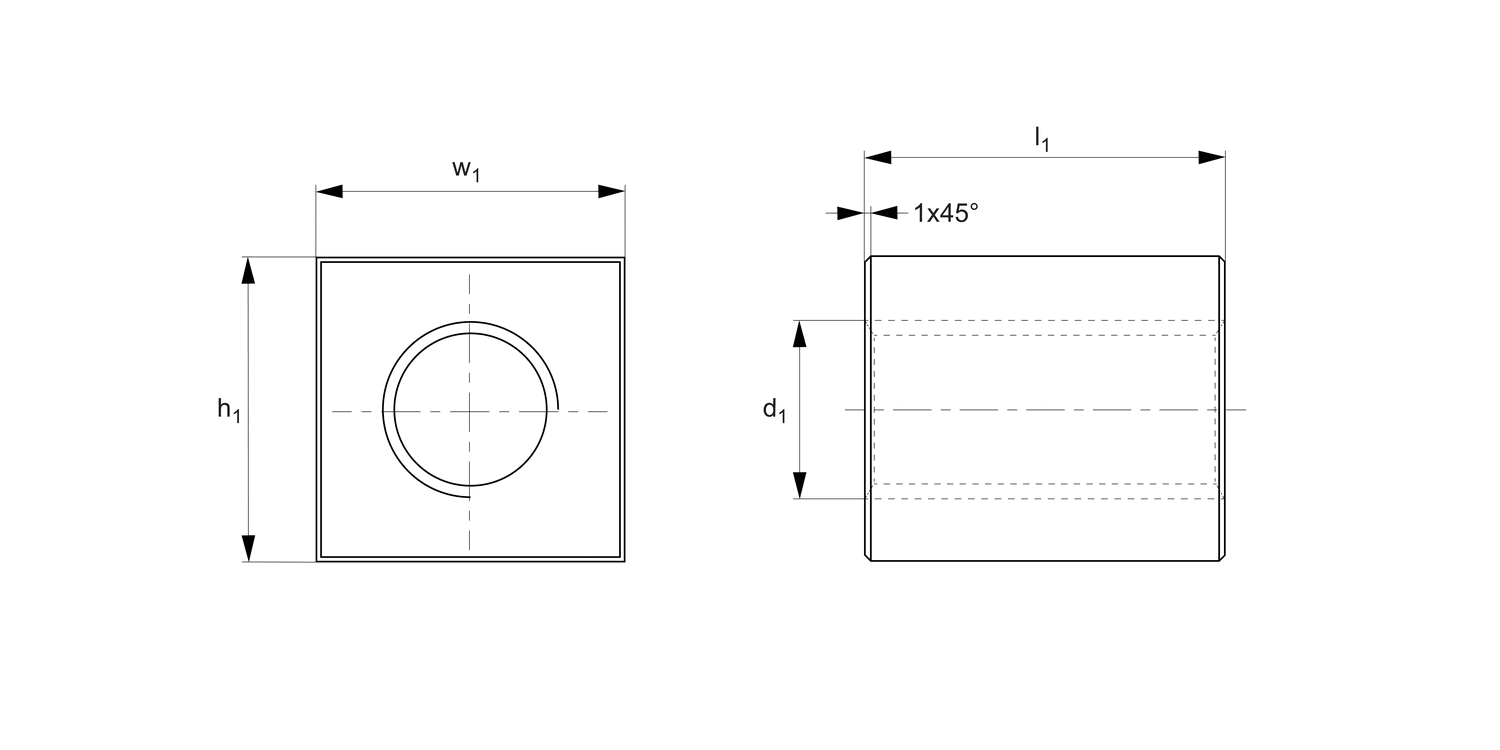

d1
tol. 7H
12
Lead
3
Thread direction
Right
Contact surface
mm²
411
h1 & w1
tol. h11
25
l1
+0.0|-0.2
25
Weight
kg
0.11
£ 22.75 per unit (click for quantity discounts)
Ready to despatch 18
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 22.75 | 0% |
| 10-19 | £ 20.48 | 10% |
| 20-39 | £ 19.34 | 15% |
| 40-49 | £ 17.06 | 25% |
| 50-99 | £ 15.93 | 30% |
| 100+ | £ 13.65 | 40% |
Technical & Application
Material
Brass (EN 12164, CW614N-M).
Technical Notes
Used for fairly light loads.
Tips
Standard nuts are right hand thread.
For use with steel or stainless steel lead screws, L1320, L1321, L1322, and L1323.
