6Ø AISI 316 Shafts
Stainless steel
L1774.10 10Ø Stainless AISI 316 Shafts
soft, material: Stainless steel
Order No.
L1774.10-5850

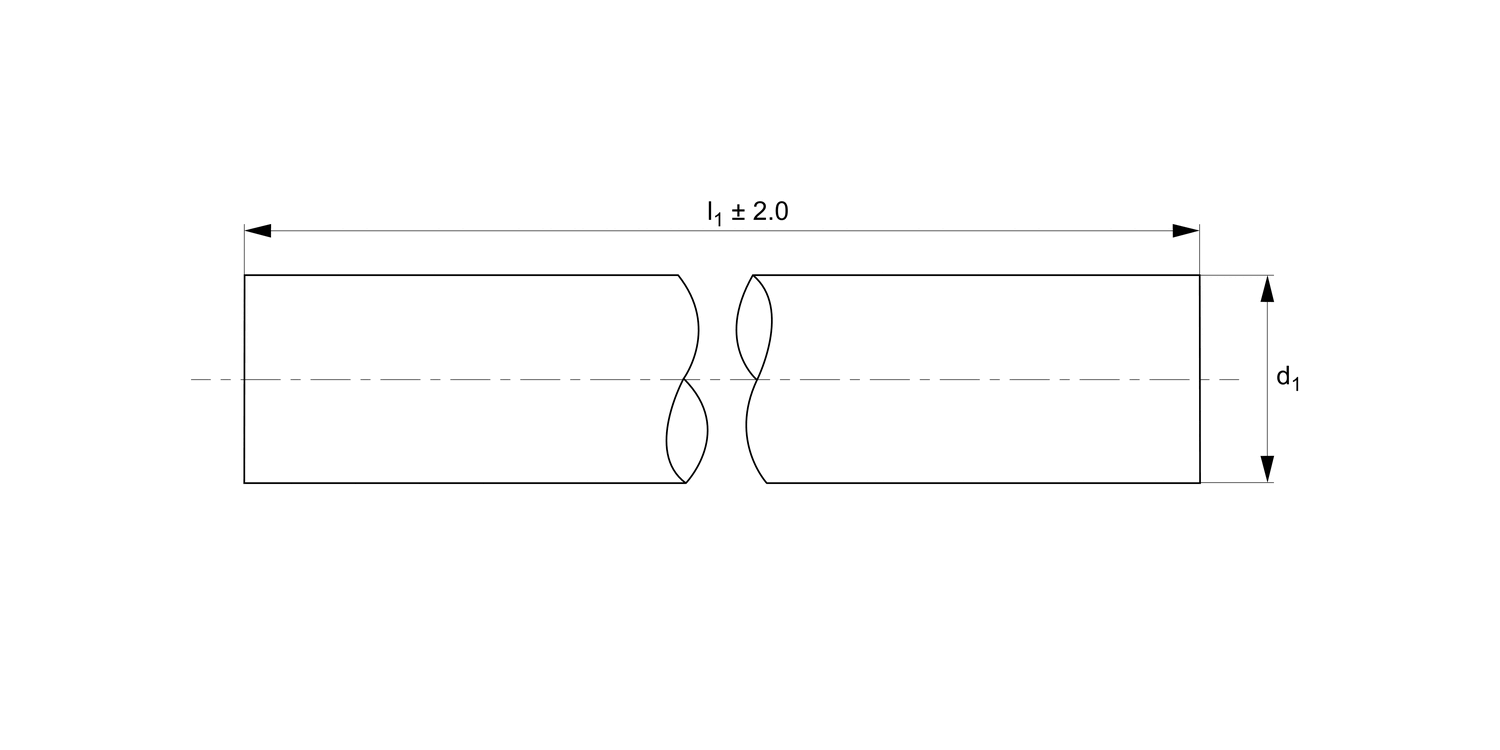

d1
tol. h6
10
l1
5850
Tolerance µ
tol. h6
+0,-10
Depth of hardness
1.0
£ 305.03 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 305.03 | 0% |
| 10-24 | £ 274.53 | 10% |
| 25-49 | £ 259.28 | 15% |
| 50-99 | £ 244.02 | 20% |
| 100-249 | £ 228.77 | 25% |
| 250+ | £ 213.52 | 30% |
Technical & Application
Material
Stainless steel (AISI 316, A4). Surface finish 0.3-0.6µ Ra, ground and polished to 8-12 cla.
Yield stress: >205 N/mm2, tensile strength: >515 N/mm2.
Technical Notes
Tolerance, h6 standard, other tolerances on request.
Straightness 0,2mm/m.
Tips
Modifications, drilled and tapped holes, circlip grooves, special coatings etc. available.
Shafts lengths are cut to typically ± 2mm.
To be used with ceramic or other bearings not containing hardened ball bearings.
