L1867 Conveyor Belt Tensioners

Name: L1867.050
Brand: WC
SKU: L1867.050

cast iron, material: Steel

Article properties

Order No.

L1867.050

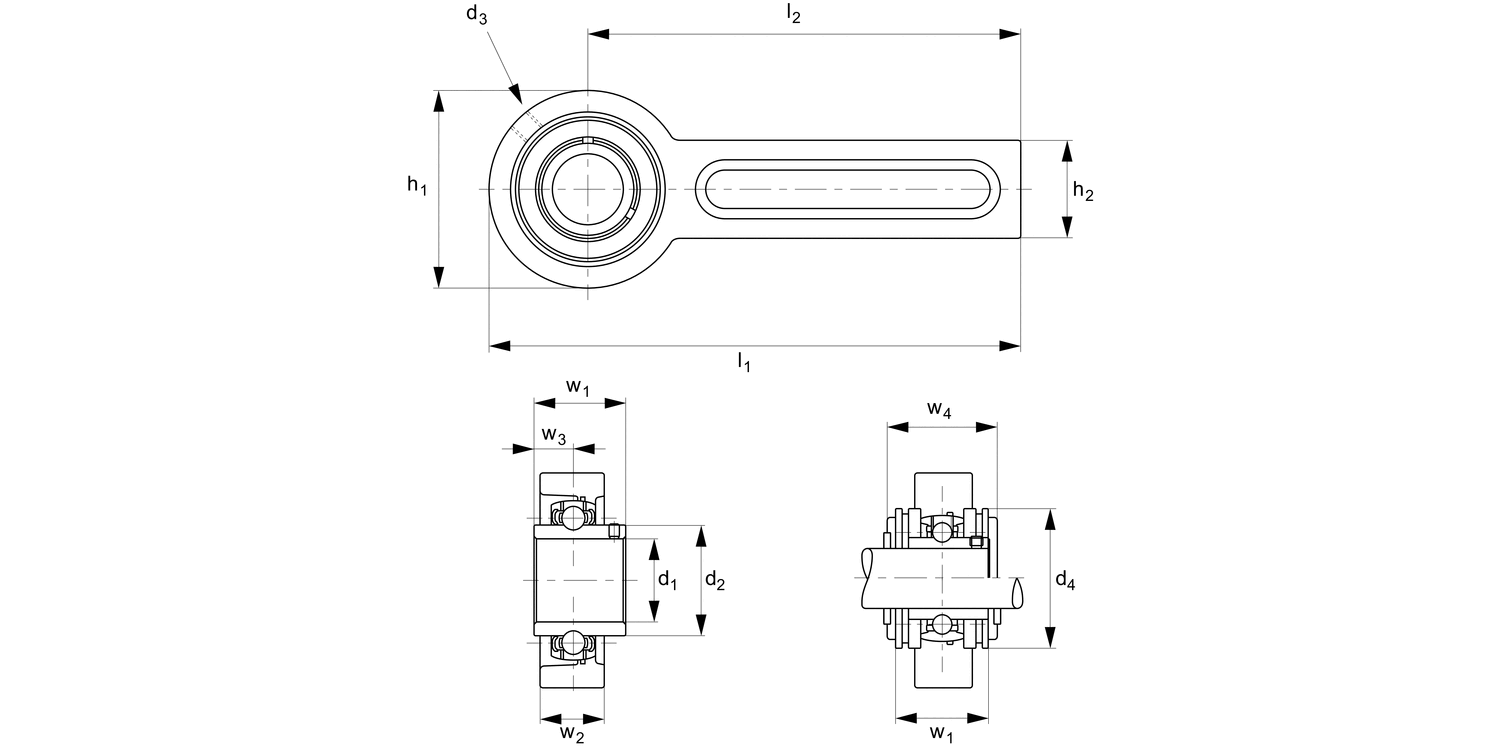

d₁ for h6

l₁

274

h₁

l₂

225

d₂

61.8

d₃

R1/8"

d₄

100

h₂

w₁

51.6

Weight kg

4.2

w₂

w₃

19.0

w₄

75.6

Dyn. radial load C max. kN

35.1

Static radial load C₀ max. kN

23.2

Speed max. rpm

3000

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Download FREE CAD

Technical & Application

Material

Housings made from cold rolled sheet steel with zinc-plated surfaces.

Technical Notes

Re-lubricatable. For use with stretcher frame (see our part L1868).
For optional shaft end caps add suffixes:
-CO for two open protective caps (with seal) for through shafts.
-CC for one open and one closed protective caps for shaft ends.

Product Datasheets

L1867 Conveyor Belt TensionersJanuary 3, 2025, 3:25 PM / 326.16 kB

Pillow Block Bearing SupportsJanuary 3, 2025, 3:13 PM / 910.62 kB

Bearing MountsJanuary 3, 2025, 3:13 PM / 1.84 MB

Linear Bearings & ShaftsJanuary 3, 2025, 3:13 PM / 7.24 MB

Linear ComponentsJanuary 3, 2025, 3:14 PM / 37.90 MB

CAD files

L1867 AcisApril 5, 2017, 9:32 AM / 1.30 MB

L1867 IGESApril 5, 2017, 9:32 AM / 1.47 MB

L1867 ParasolidApril 5, 2017, 9:33 AM / 425.83 kB

L1867 ProEApril 5, 2017, 9:33 AM / 770.58 kB

L1867 SolidWorksApril 5, 2017, 9:33 AM / 2.12 MB

L1867 StepApril 5, 2017, 9:33 AM / 732.33 kB
