Stainless Sliders - T Rail
low profile

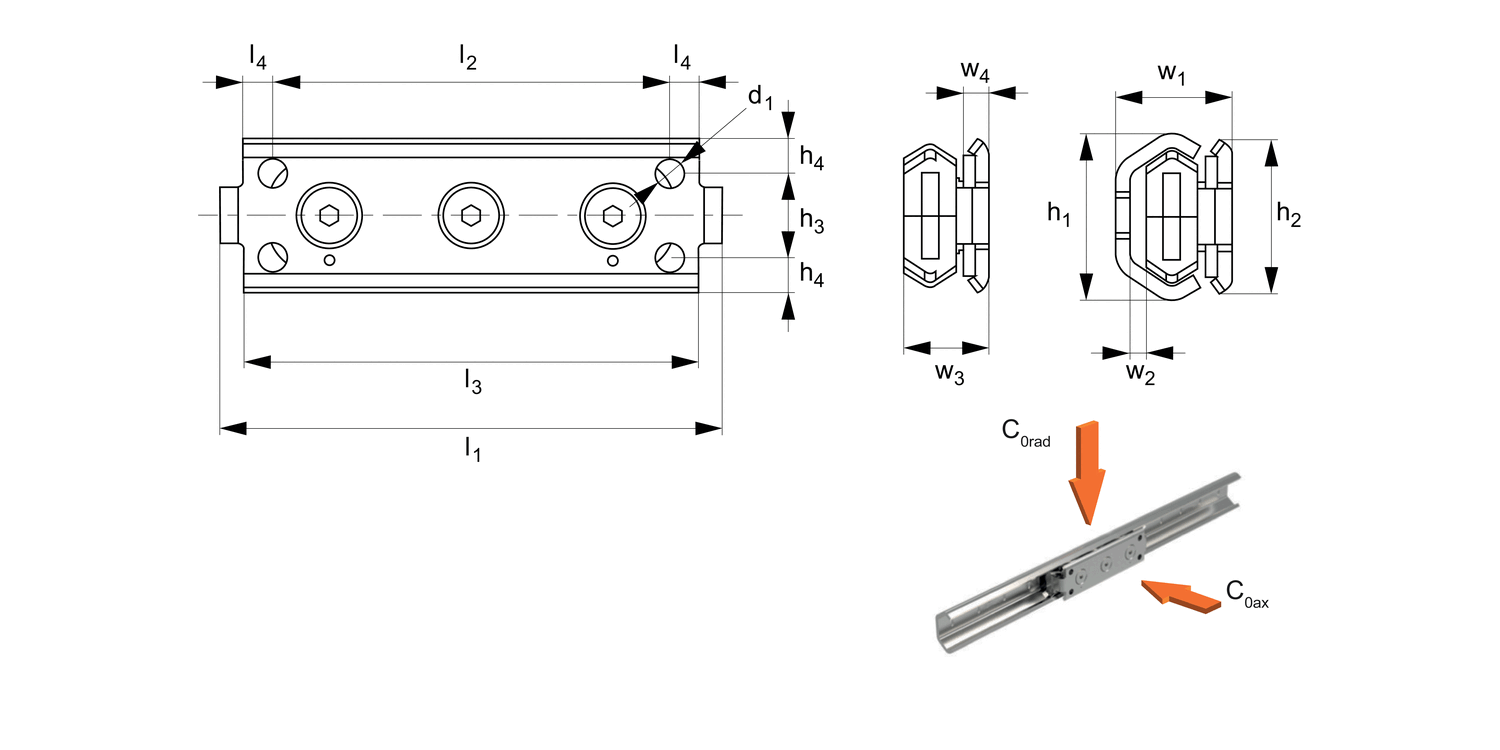

L1971.LP Low Profile Stainless Sliders
for T rail (master), material: Stainless steel
Order No.
L1971.30T-088
Size
30
d1
M5
l1
88
h1
29.5
h2
27
h3
15
h4
6.0
l2
70
Weight
kg
0.12
l3
80
l4
5.0
w1
20.5
w2
3.5
w3
15.0
w4
4.5
Load C0 rad
max.
N
800
Load C0 ax
max.
N
400
£ 84.45 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 84.45 | 0% |
| 5-9 | £ 76.01 | 10% |
| 10-19 | £ 71.78 | 15% |
| 20-49 | £ 63.34 | 25% |
| 50+ | £ 54.89 | 35% |
Technical & Application
Material
Body stainless steel (316L), stainless steel (AISI 440) rollers with 2RS, water resistant rubber seals.
Technical Notes
The three sizes of sliders are suited to the relevant L1971.TEX rail size.
Select the size and quantity to suit the required load.
Tips
The punched dot marked on the slider body indicates the orientation for the loading of the fixed rollers.
The middle roller is eccentric, allowing the preload to be easily adjusted when mounted inside the rail.
Coefficient of friction (without seals) 0.01.
