L1978.CR16 Curviline Sliders

Name: L1978.CR16-070
Brand: WC
SKU: L1978.CR16-070
Price: 173.78 EUR
Availability: InStock

size 16, material: Stainless steel

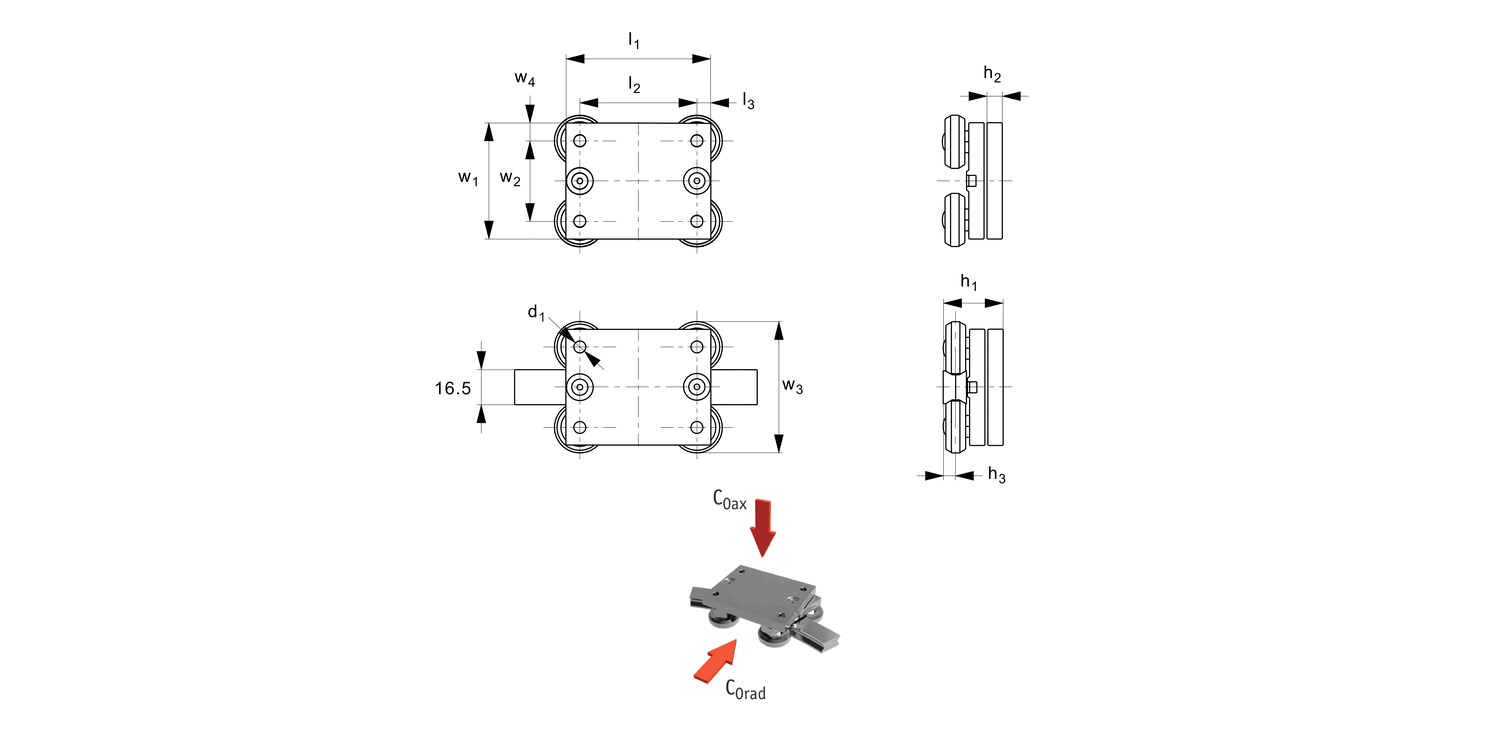

Article properties

Order No.

L1978.CR16-070

w₁

h₁

32.3

d₁

h₂

h₃

5.7

l₁

l₂

l₃

w₂

w₃

w₄

Load C_{0 rad} max. N

570

Load C_{0 ax} max. N

400

Weight kg

0.45

See full product selection

£ 173.78 per unit (click for quantity discounts)

Ready to despatch 28
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 173.78	0%
5-9	£ 165.09	5%
10-19	£ 156.40	10%
20-49	£ 147.71	15%
50+	£ 130.34	25%

Download product datasheet

Technical & Application

Material

Slider body: Fe360. Roller 100Cr6. Roller pins: Lubricated for life.
Finish: electrolytic zinc plated.

Technical Notes

Where moment loads are present use two or more sliders. Constant (L1978.CRX16) and variable (L1978.VRX16) radii rails can be produced.
Temperature range -30°C to +100°C.

Tips

All stainless steel available. Other coatings and finishes are also available.
