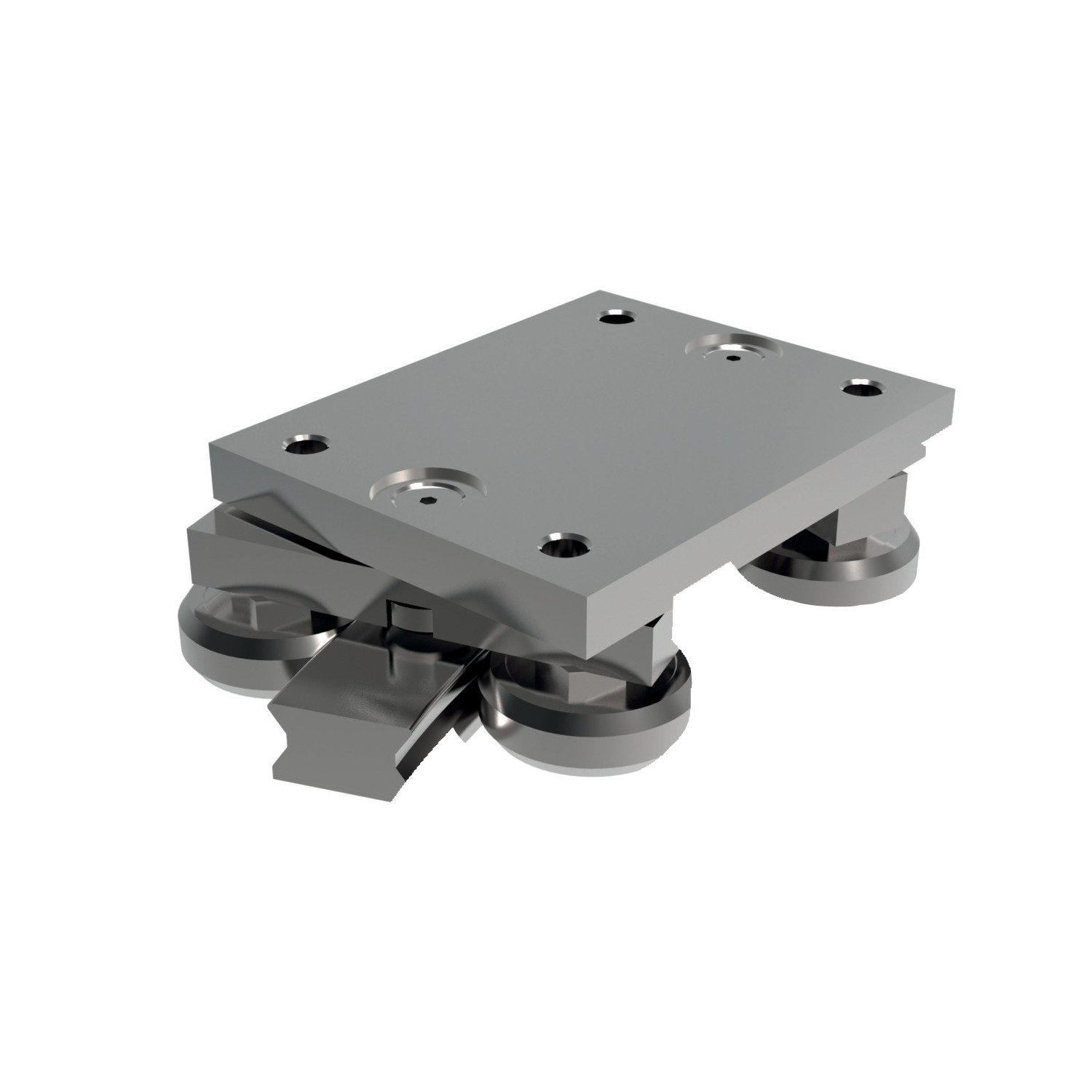

L1978.CR23 Curviline Sliders

Name: L1978.CR23-100
Brand: WC
SKU: L1978.CR23-100

size 23, material: Stainless steel

Article properties

Order No.

L1978.CR23-100

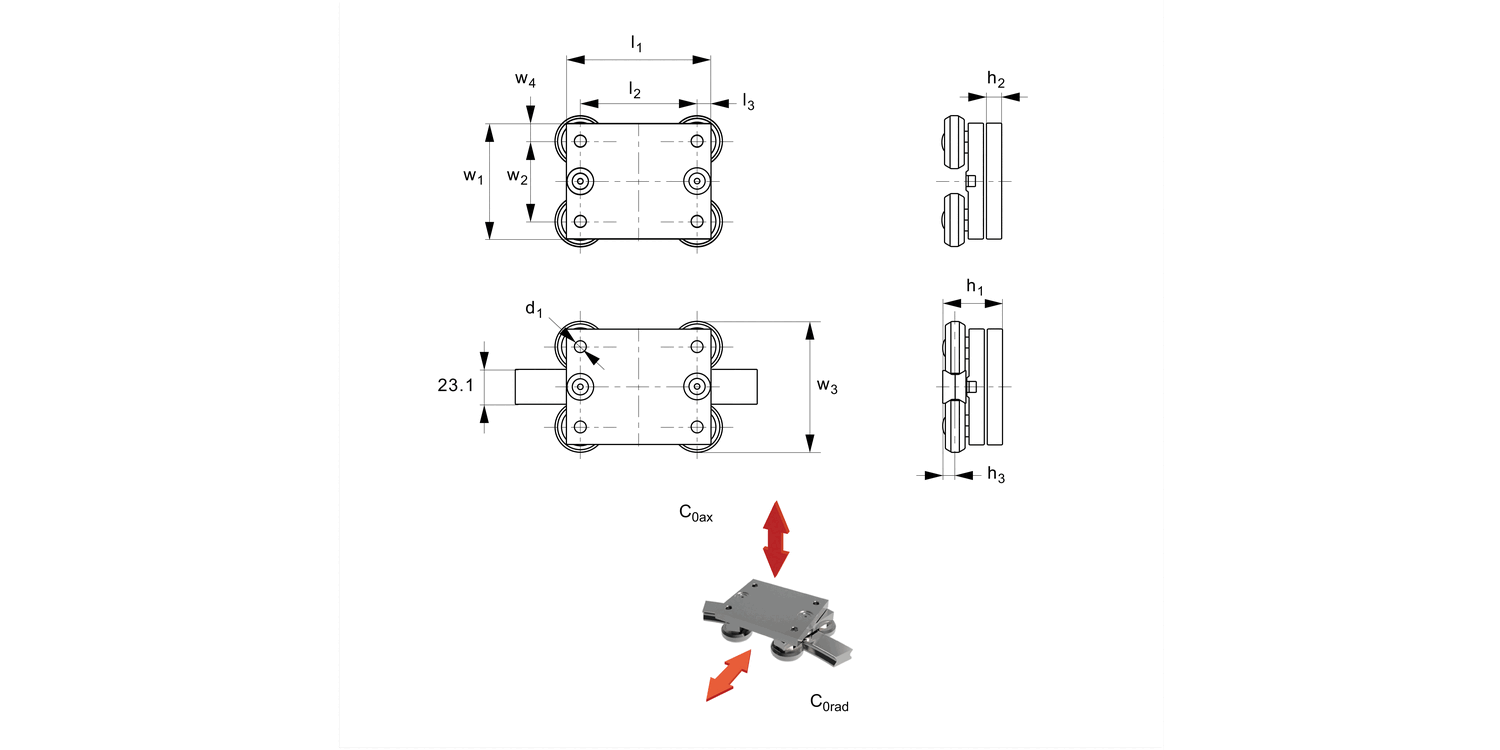

w₁

h₁

36.4

h₂

h₃

7.5

l₁

100

l₂

l₃

w₂

w₃

89.5

w₄

12.5

Load C_{0 rad} max. N

1615

Load C_{0 ax} max. N

1130

Weight kg

1.10

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Technical & Application

Material

Slider body: Fe360. Roller 100Cr6. Roller pins: Lubricated for life.
Finish: electrolytic zinc plated.

Technical Notes

Where moment loads are present use two or more sliders.
Constant (L1978.CRX23) and variable (L1978.VRX23) radii rails can be produced.
Temperature range -30°C to +100°C.

Tips

All stainless steel available. Other coatings and finishes are also available.
