Curved Rails
HomeProductsLinear ComponentsLinear Guideways & RailsLong Linear RailsCurved RailsL1978.VRX16L1978.VRX16-xxx-xx

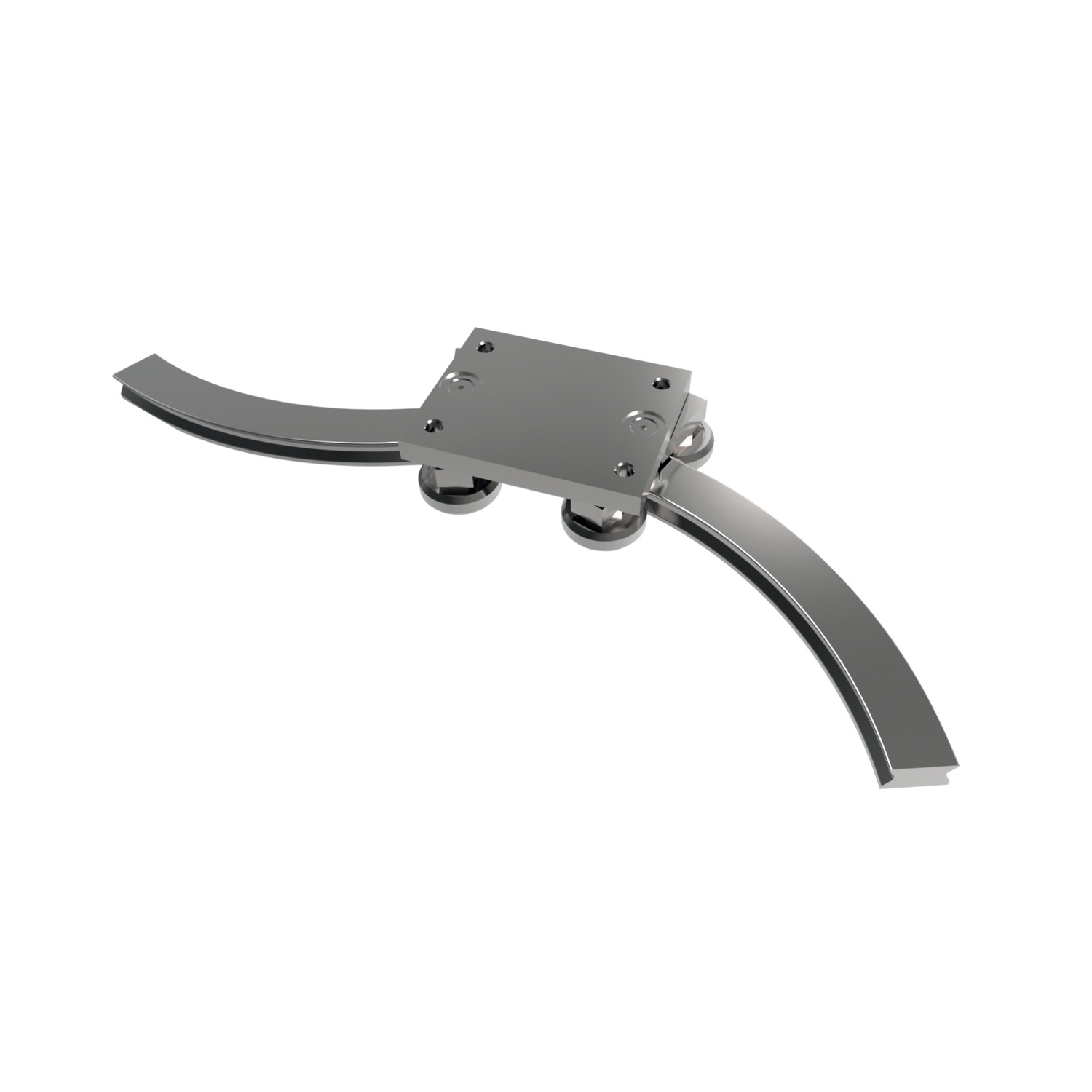

L1978.VRX16 Variable Radius Rails

size 16, material: Steel
L1978.VRX16 Variable Radius Rails
L1978.VRX16 Variable Radius Rails

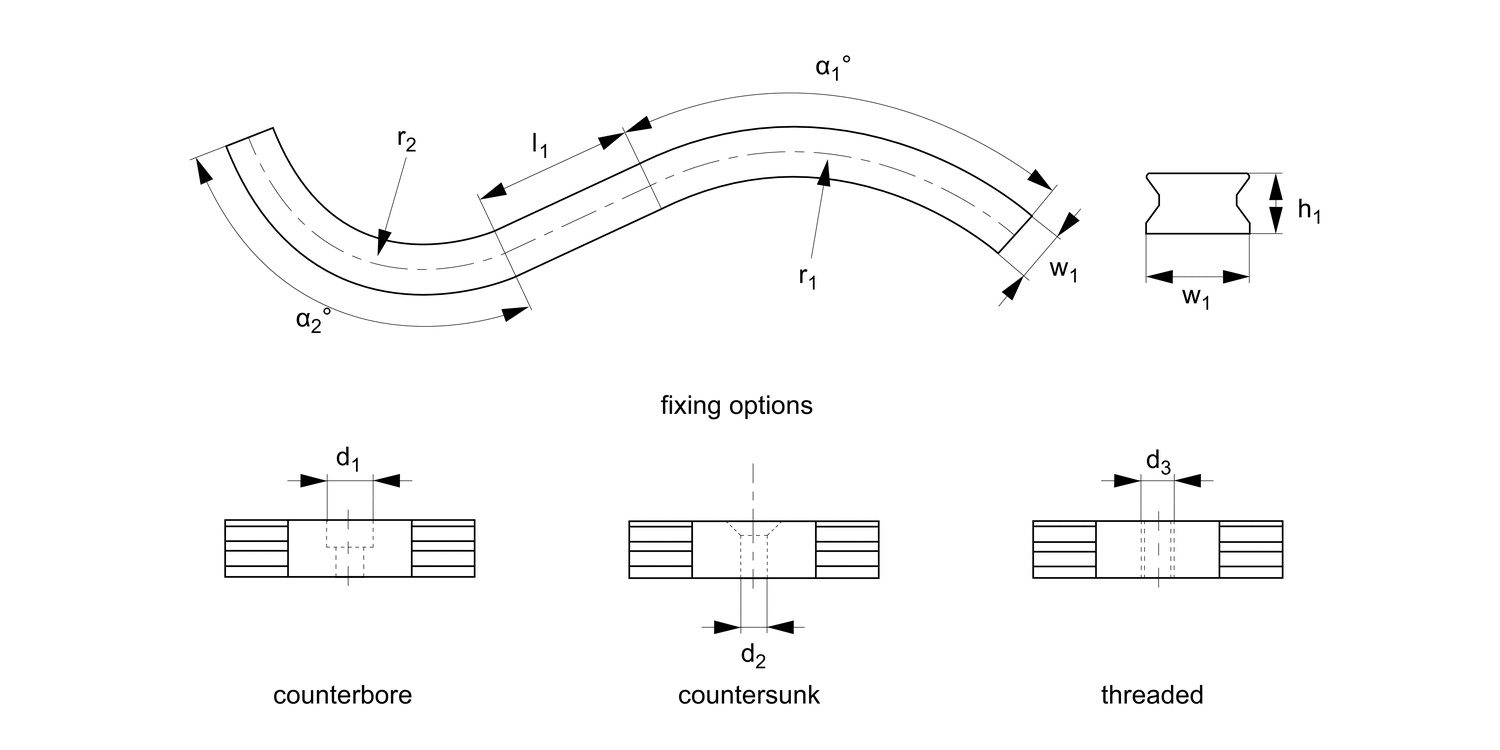

Article properties
Order No.
L1978.VRX16-xxx-xx
w1
16.5
h1
10
r1 & r2
tba
α1 & α2 °
tba
d1 for
M5
d2 for
M5
d3 for
M6
l1
tba
See full product selection
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1+-
Download product datasheet

Technical & Application

Material

Steel rail (C43), electrolytic zinc plated.
All stainless steel on request.

Technical Notes

Advise angle required and fixing option type.
Temperature range -30°C to +80°C.
Rail weight 1,2 Kg/m.

Tips

Combine with curviline sliders L1978.CX16-070.
Recommended hole pitch on rail is 80mm.
Rail tolerance ± 0,5mm, angle tolerance ± 1°.
Recommended rail hole is counterbored (easy to install).

Important Notes

Not to be used in high-cycle applications.

Product Datasheets

L1978.VRX16 Variable Radius RailsAugust 8, 2024, 9:47 AM / 378.58 kB
Curved RailsAugust 8, 2024, 9:41 AM / 791.93 kB
Long Linear RailsAugust 8, 2024, 9:41 AM / 9.71 MB
Linear Guideways & RailsAugust 8, 2024, 9:42 AM / 15.66 MB
Linear ComponentsAugust 8, 2024, 9:42 AM / 37.90 MB

Application images

l1978.vrx16 application images
