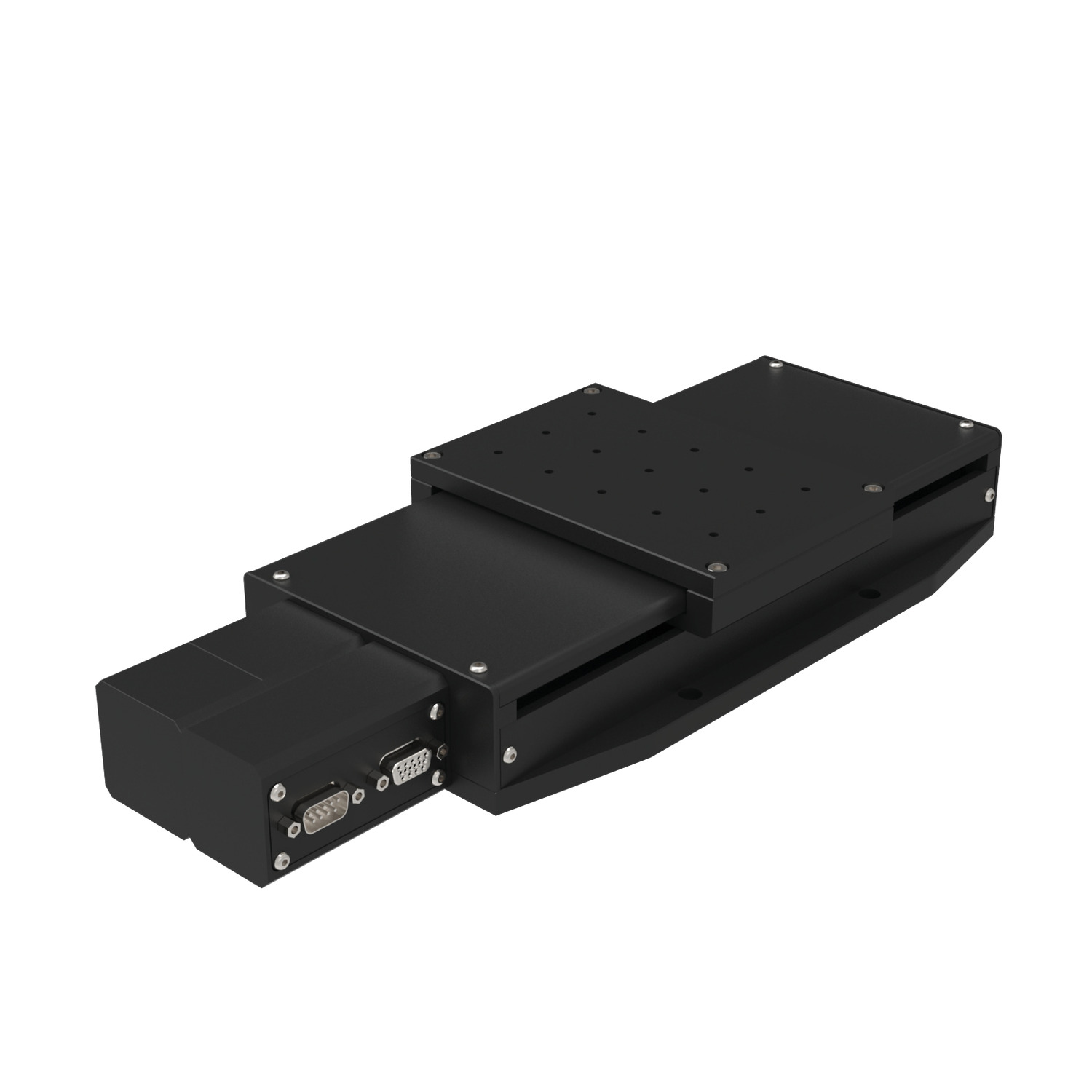

L3500 Medium-Duty Motorised Stages
high precision, material: Aluminium
Order No.
L3500.150-STA
Travel
150
Motor type
Stepper
Motor code
-STA
Accuracy
µm/mm
0,6µ
Bi-directional repeatability
10µ
Horizontal load
max.
kg
23
Vertical load
max.
kg
6.5
Side load
max.
kg
18
Weight
kg
2.41
Lead screw pitch
1.5875
Speed
max.
mm/s
12.0
l1
277
l2
94.3
Resolution
0,3µ
£ 4,270.62 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-1 | £ 4,270.62 | 0% |
| 2-4 | £ 4,057.09 | 5% |
| 5+ | £ 3,843.56 | 10% |
Technical & Application
Material
Black anodised aluminium body (6061). Hardened linear guideways, stainless steel Acme lead screw (with internally lubricated anti-backlash nut).
Technical Notes
These are smooth running, precise and stiff linear stages. For ease of use they have separate connections for motor power and limit/encoder signals. Integrated limit switches are provided as standard.
Easy plug and play system. Controllable from PC or PLC when used in conjunction with a motion controller. Controllers come with their own software but many pre-existing software packages (such as Labview) can be used.

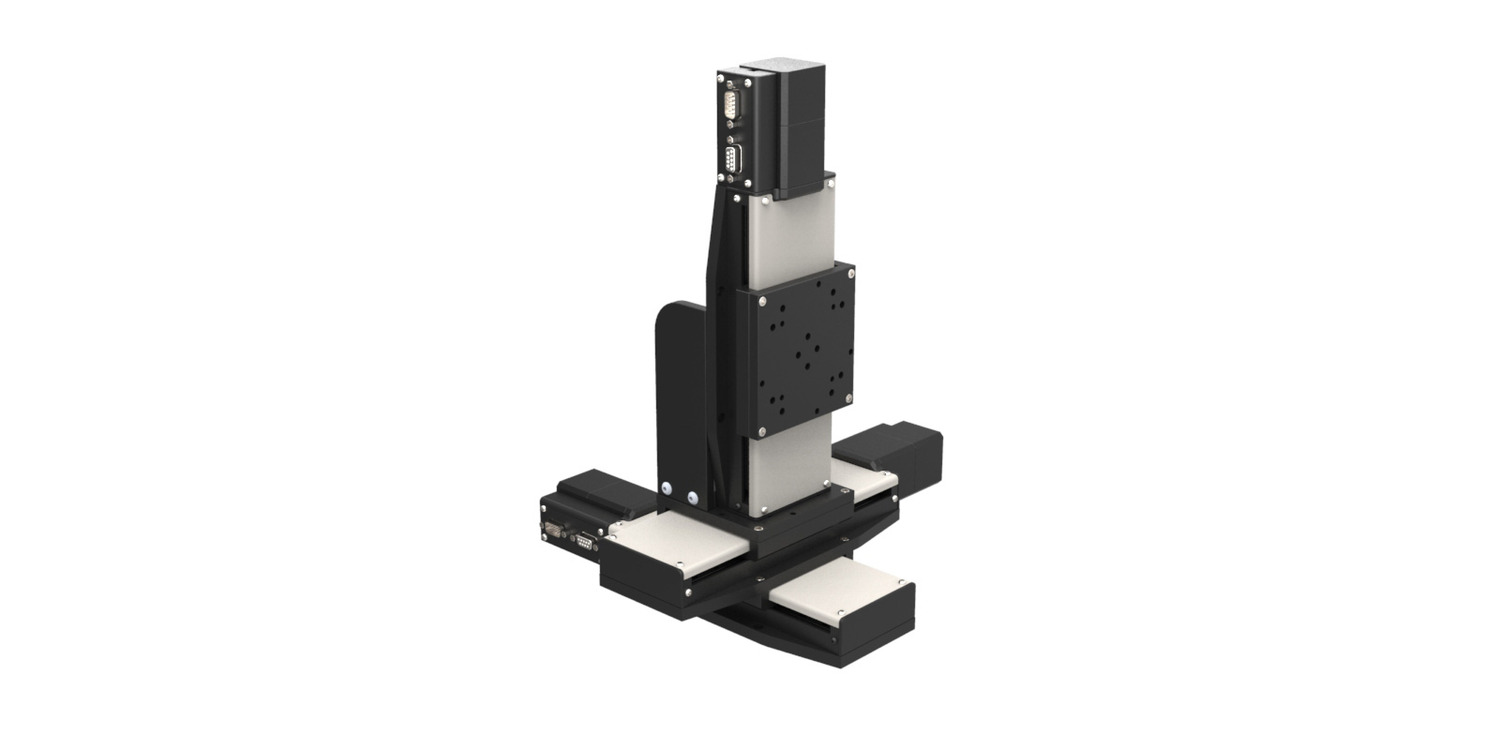

Can be readily supplied in XY, XZ and XYZ configurations.
Applications - research, semi-conductors, fibre optics, automation etc.
Replace -XXX in part number with the code for your preferred motor type - see second data table for codes and specifications.
Tips
Motor options:
Stepper - Nema 17, high torque, brushless. 0.95 Amp/phase, 5.0 Ohm/phase, 3.1 mH/phase, 1.8°/step. Optional Stepper & 1000 line linear encoder.
Servo - Nema 17, brushless DC motor. Continuous stall torque 0.25Nm, peak torque 0.7 Nm, with 1000 line rotary encoder.
Intelligent stepper - Nema 17 with a fully programmable motion controller inbuilt (ie no need for an external motion controller). Two +5 to +24VDC I/O lines. One 10 bit analogue input selectable 0 to +10VDC, 0 to +5VDC. RS422/485 communications. Input voltage +24VDC.
Limit switches are wired normally open.

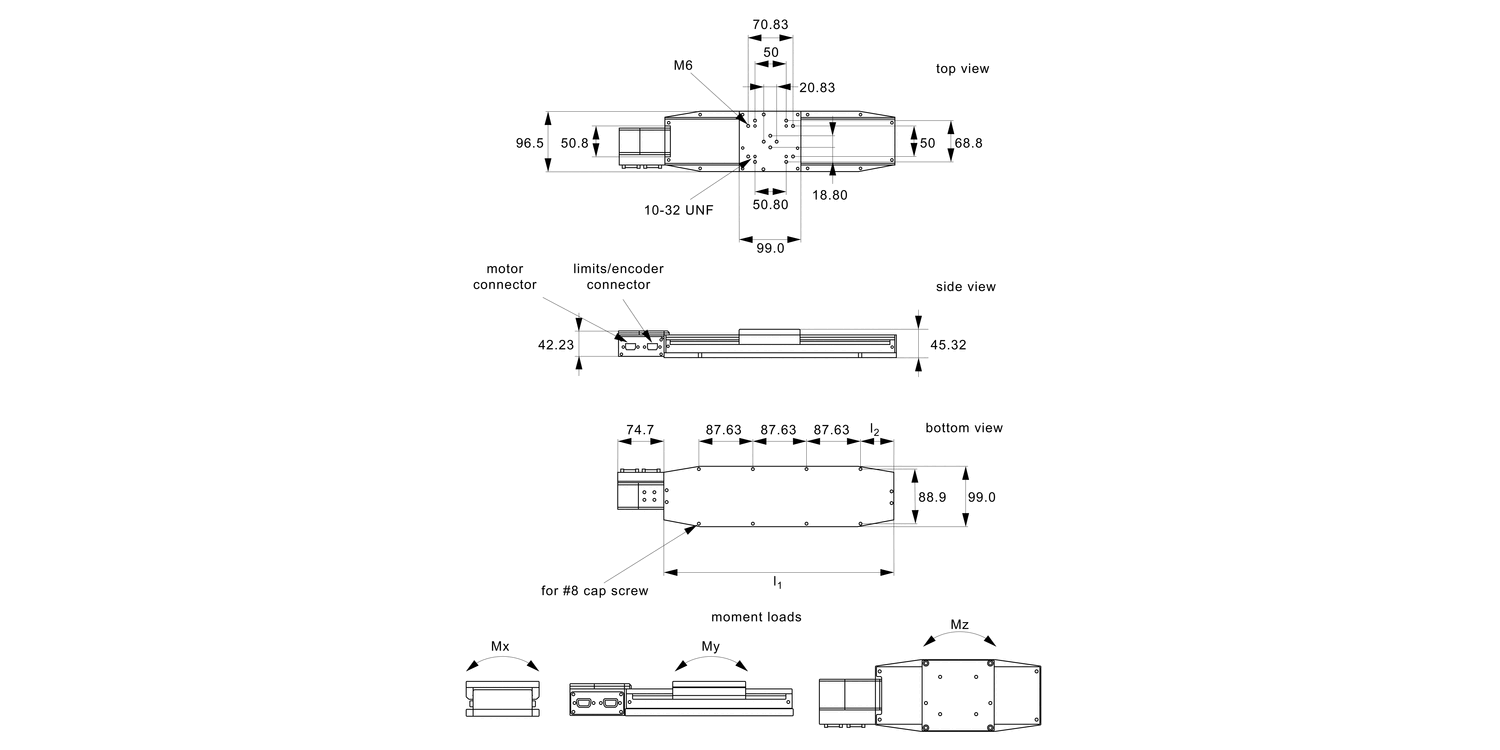

Option with 512 line encoder. Drawings show stepper motor configuration. See special pages for further motor options.
Important Notes
Max. moment loads:
Mx = 20 Nm
My = 20 Nm
Mz = 19 Nm
For 50mm travel stage Ma and Mb = 12 Nm.
For combined stages, add suffixes:
XY - for XY stage
XZ - for XZ stage
XYZ - for XYZ stage
