Miniature Motorised Stages
high precision
L3508 Motorised Linear Stages
high precision, material: Aluminium
Order No.
L3508.100-STA
Travel
100
Horizontal load
max.
kg
4.5
Accuracy
±
mm
0,6µ
Repeatability
±
5µ
Lead screw pitch
2
Axial load (for 2mm lead screw)
max.
kg
2.5
Axial load (for 10mm lead screw)
max.
kg
0.5
l1
185.2
Weight
kg
0.89
Motor code
-STA
Motor type
Stepper
l2
62.6
Speed
max.
mm/s
25
Resolution
±
0,04µ
£ 2,661.12 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-1 | £ 2,661.12 | 0% |
| 2-4 | £ 2,528.06 | 5% |
| 5+ | £ 2,395.01 | 10% |
Technical & Application
Material
Black anodised aluminium body (6061). Hardened linear guideways, stainless steel Acme lead screw (with internally lubricated anti-backlash nut).
Technical Notes
Easy plug and play system. Controllable from PC or PLC when used in conjunction with a motion controller. Controllers come with their own software but many pre-existing software packages (such as Labview) can be used. Integrated limit switches are provided as standard.
Can be readily supplied in XY, XZ and XYZ configurations.
Applications - research, semi-conductors, fibre optics, automation etc.
Replace -XXX in part number with the code for your preferred motor type - see second data table for codes and specifications.
Tips
Motor options:
Stepper Nema 17, high torque, brushless. 0.95 Amp/phase, 5.0 Ohm/phase, 3.1 mH/phase, 1.8°/step. Option with 1000 line encoder.
Intelligent stepper - Nema 17 with a fully programmable motion controller inbuilt (ie no need for an external motion controller). Two +5 to +24VDC I/O lines. One 10 bit analogue input selectable 0 to +10VDC, 0 to +5VDC. RS 422/485 communications. Input voltage 24VDC.
Option with 512 line encoder.

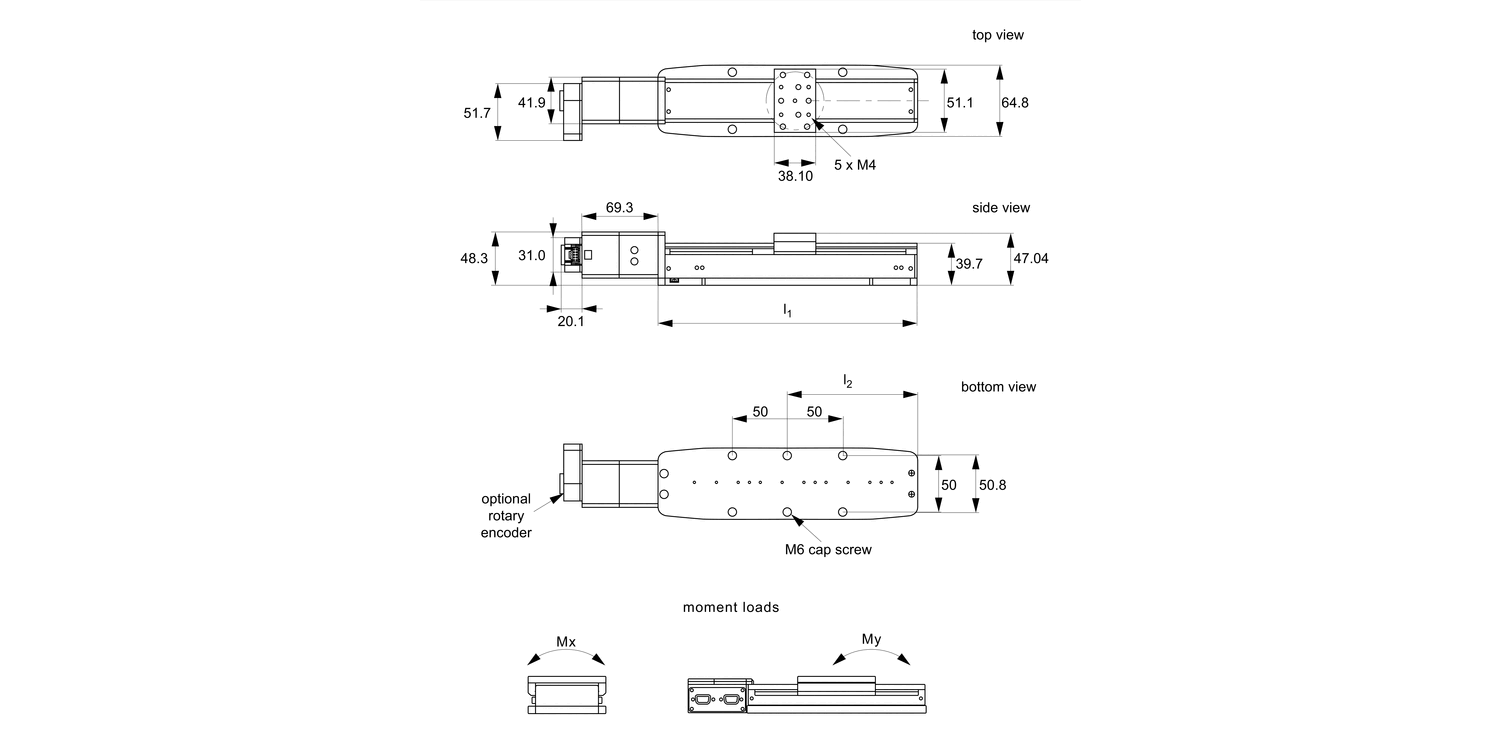

Limit switches are wired normally closed. Drawings show stepper motor configuration. See special pages for further motor points.
Important Notes
Max. moment loads:
Mx = 12 Nm
My = 8 Nm
For combined stages, add suffixes:
XY - for XY stage
XZ - for XZ stage
XYZ - for XYZ stage
