P0134.B4 Ultra Low Head - Shoulder Screw

Name: P0134.060-040-B4
Brand: WC
SKU: P0134.060-040-B4
Price: 7.63 EUR
Availability: OutOfStock

hex drive - 316 stainless, blackened, material: 316 stainless, blackened

Article properties

Order No.

P0134.060-040-B4

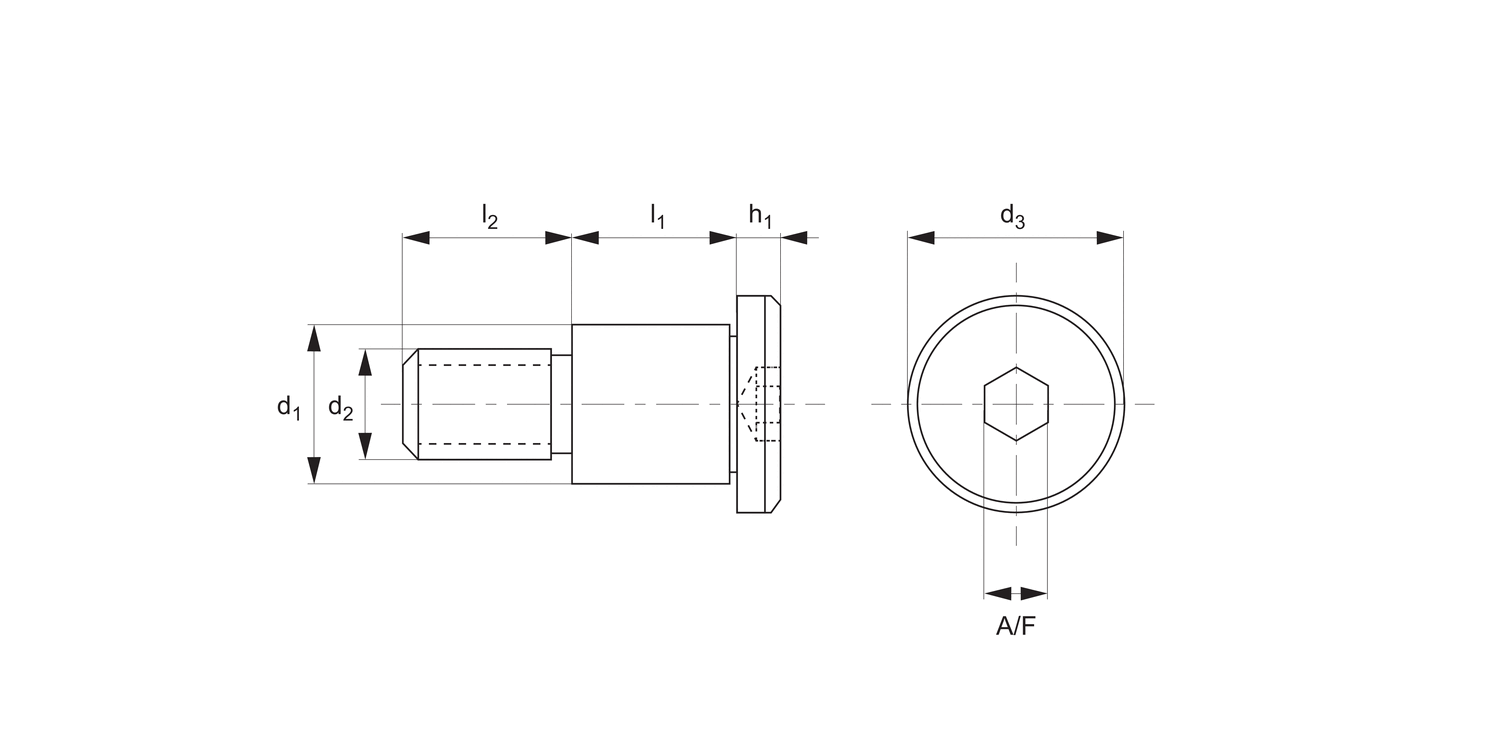

d₁ +0|-0.025

l₁ +0.05|-0.0

d₂

M 5

d₃

l₂

h₁

1.7

A/F

See full product selection

£ 7.63 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-99	£ 7.63	0%
100-249	£ 6.87	10%
250-749	£ 6.10	20%
750+	£ 5.34	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (AISI 316, 1.440), black oxide coating. Tensile strength 480 N/mm2. Proof stress min. 200 N/mm2, austenitic stainless steel.

Technical Notes

These very low profile socket shoulder screws have a head height approximately 1/3 that of normal shoulder screws (P0130).
316 Series stainless have excellent corrosion resistance. Stainless steel suitable for marine and other applications.

Product Datasheets

P0134.B4 Ultra Low Head - Shoulder ScrewAugust 8, 2024, 9:48 AM / 82.40 kB

Blackened Stainless Shoulder ScrewsAugust 8, 2024, 9:42 AM / 534.53 kB

Shoulder ScrewsAugust 8, 2024, 9:42 AM / 2.19 MB

Shoulder Screws, Captive Screws & Sealing ScrewsAugust 8, 2024, 9:42 AM / 6.75 MB

Mechanical ComponentsAugust 8, 2024, 9:43 AM / 42.45 MB

CAD files

P0134.B4 AcisJanuary 10, 2022, 1:13 PM / 375.58 kB

P0134.B4 IGESJanuary 10, 2022, 1:13 PM / 1.01 MB

P0134.B4 ParasolidJanuary 10, 2022, 1:13 PM / 315.02 kB

P0134.B4 ProEJanuary 10, 2022, 1:13 PM / 3.38 MB

P0134.B4 SolidWorksJanuary 10, 2022, 1:13 PM / 15.67 MB

P0134.B4 StepJanuary 10, 2022, 1:13 PM / 549.72 kB
