Shoulder Bolts - Hex. Head
Steel

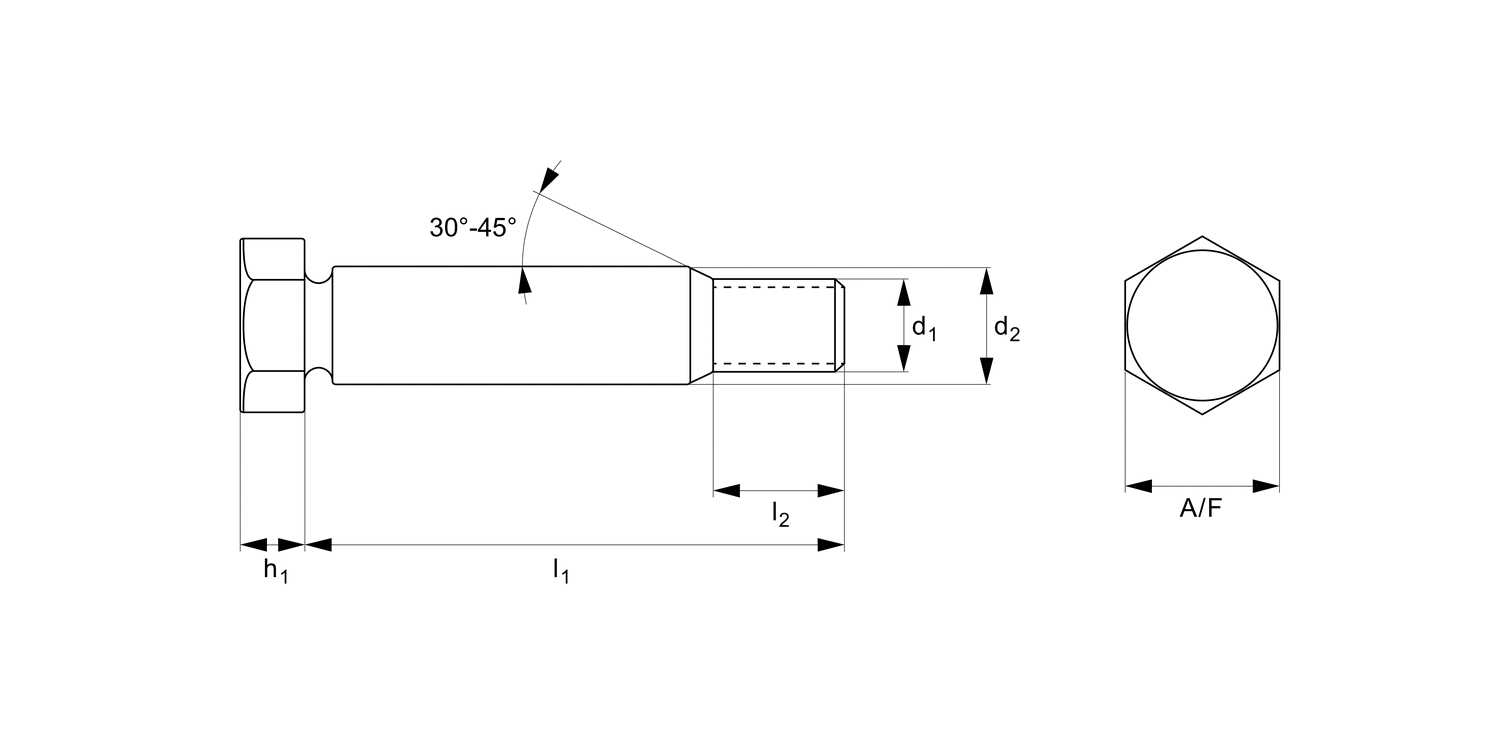

P0141.SC Steel Shoulder Bolts - Hex. Head
short thread, steel 10.9, material: Steel
Order No.
P0141.080-040-SC
d1
M 8
d2
tol. k6
9
l1
40
l2
11.5
h1
5.3
A/F
13
£ 3.89 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 3.89 | 0% |
| 50-99 | £ 3.11 | 20% |
| 100-199 | £ 2.72 | 30% |
| 200-999 | £ 1.95 | 50% |
| 1000+ | £ 1.56 | 60% |
Technical & Application
Material
Black alloy steel, strength 10,9. Hardness 38 HRC, tensile strength 830 N/mm².
Technical Notes
To DIN 610.
For strength 8.8 see part P0140.SC
Tips
Do not tighten to standard strength class 10,9 torque; as the tightening torque is limited,
by the presence of the reduced diameter undercut under the head and at the shoulder/thread area.
Drill hole to H7 tolerance.
