Cap Screws
Steel
P0200.ZP Socket Cap Screws
Steel - zinc-plated, material: Zinc-plated
Order No.
P0200.016-080-ZP

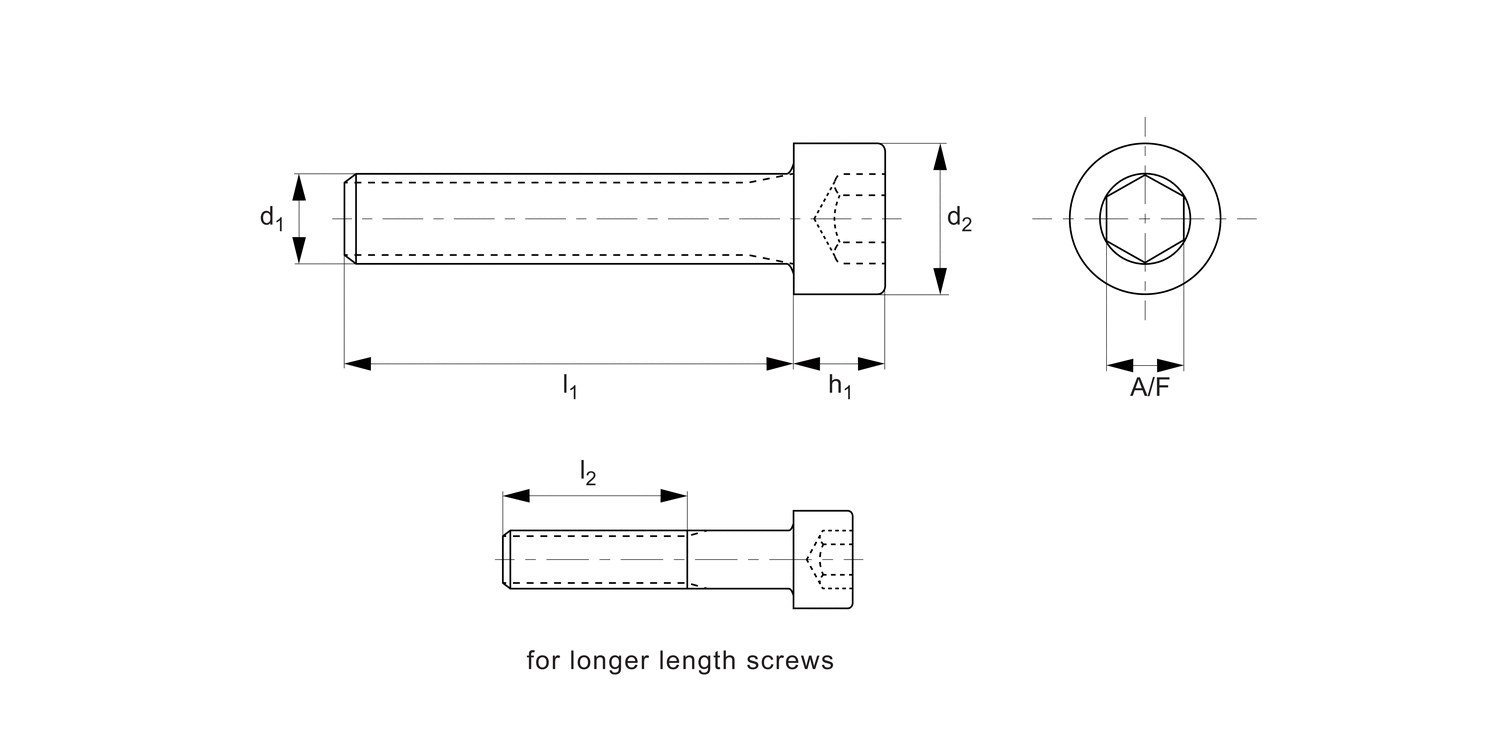

d1
M16
l1
80
d2
24
h1
16
l2
44
A/F
14
Material
Steel ZP
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Steel, zinc-plated (grade 12.9).
Tensile strength 1200 N/mm².
Technical Notes
To DIN 912, ISO 4762. For the majority of screw lengths the threads goes all the way to the head of the screw (i.e. l1= l2) less 2.5 thread pitches.
For longer length screws the threaded portion l2
