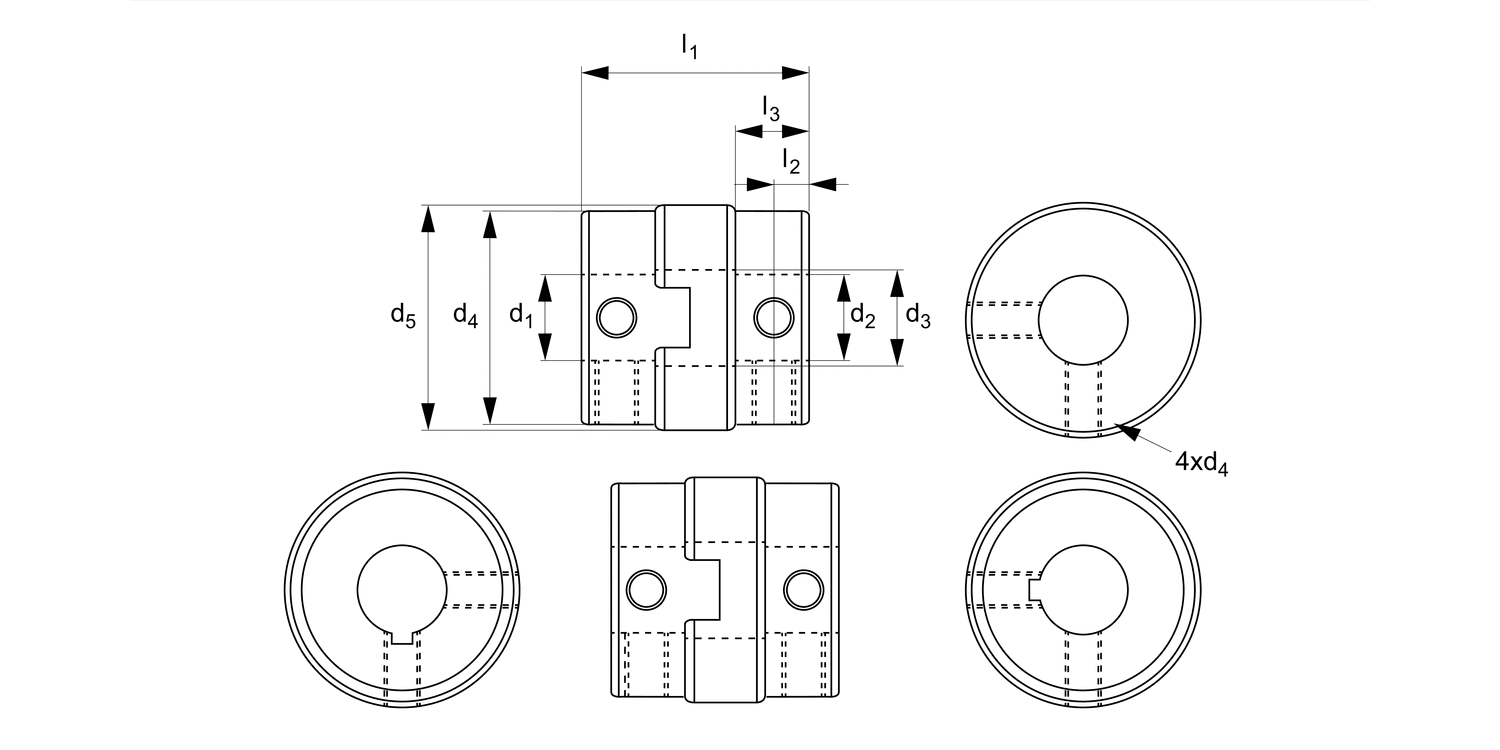

R3055.2 Oldham Coupling
with Carbon Resin Insert, material: Stainless steel
Order No.
R3055.K-10
Ø d
38
d1 & d2
10
d3
17.0
d4
38
d5
41
l1
40
l2
7
l3
15
Clamping screw lock torque
Nm
4.0
Clamping screw d6
M 5
£ 67.04 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 67.04 |
Technical & Application
Material
Mainframe: Stainless steel alloy SUS304.
Insert: Carbon resin.
Technical Notes
Operating temperature: -40° - 90°C.
Offset of angular, parallel, or axial deviation are individual allowed value,
so couple reasons of axial offset appearing at same time would reduce the unit allowable value.
Available options for key way per inner diameter is bigger than 6mm.
