One Piece Rigid Shaft Couplings
Aluminium

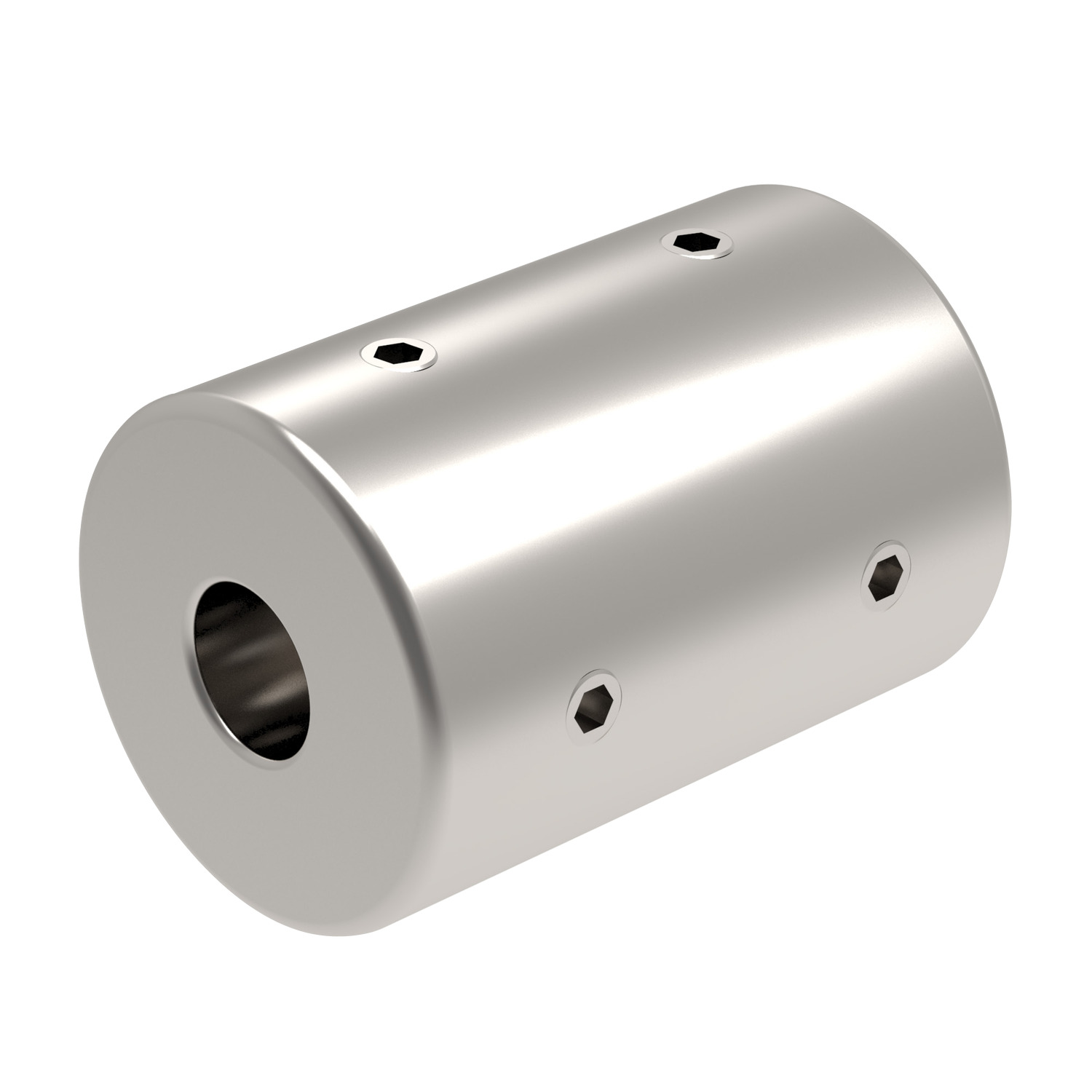

R3209 Rigid Shaft Coupling - One Piece
Stainless, set screw, material: Stainless steel
Order No.
R3209.32-140-160

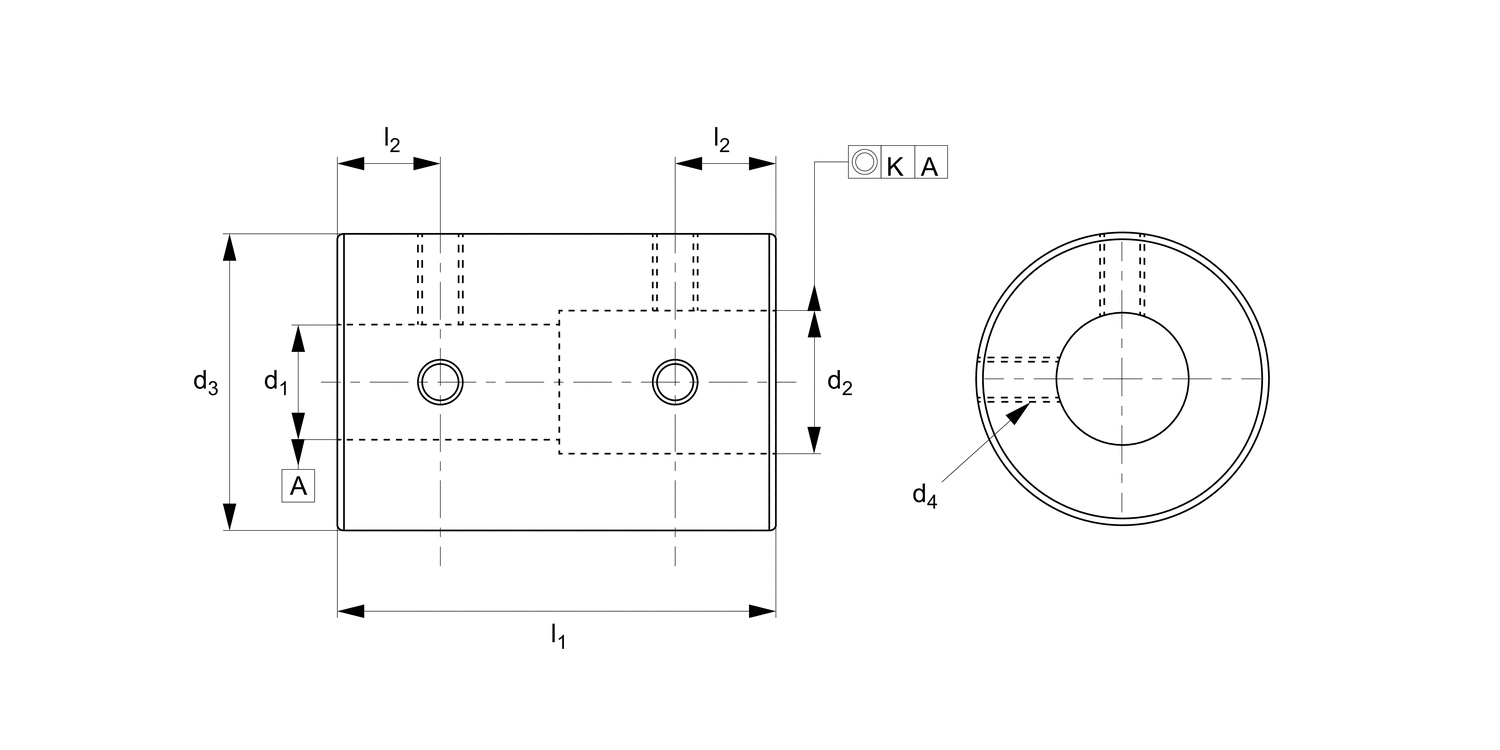

d1
tol. H7/H8
14
d2
tol. H7/H8
16
d3
32
d4
M 4
l1
41
l2
10
Static torque
Nm
4
rpm
max.
12000
Moment of inertia
kg·m²
3,1x10-5
Torque screw to
Nm
1.7
Weight
g
190
Weight
g
190
£ 25.92 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 25.92 |
Technical & Application
Material
Stainless steel (A2).
Technical Notes
Maintenance free, excellent anti-oil and corrosion-resistance.
Reciprocating torque is quarter static torque.
Rotational torque is half static torque.
Important Notes
Concentricity; K=0,03 when Ød1, Ød2 are 3 and 4, otherwise K=0,05
For sizes where d1 <4 and d2 >5, there are 3 set screws.
For sizes where d1 and d2 both smaller than 4, there are 2 set screws.
Different bore sizes available on request.
For keyways, please add "-KW" suffix when ordering.
